Technical Specs

• 10pA-10nA or 100pA-100nA current range
• 2 pA current step size
• 0.5x0.5x0.2 μm or 1x1x0.5 μm (XYZ) Scanner
• Z resolution 0.5 pm*
• X Y resolution 1pm*
• Constant current, constant height imaging modes
• Current-Voltage, Current-Distance spectroscopy modes
• Tip voltage ± 15 V in 300 μV steps
• Ultrasonic motor based sample aproach.
• Sample reception up to 15 mm

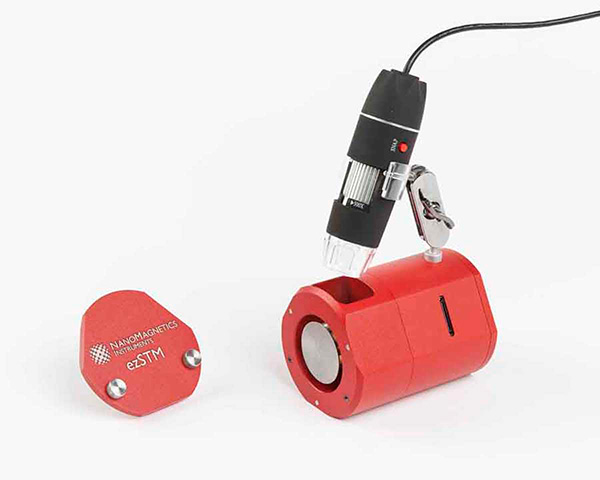

• 2 MP side view video microscope
• *Can be achieved by using proper vibration isolation table

Controller Electronics

• Digital feedback with FPGA/DSP
• 24bit ADCs/DACs
• Simultaneous scan of 6 channels @ 4096x4096 pixels
• USB interface
• 100-240 VAC, 50/60 Hz, 50 W

Software

• Control Software and Image Analyzer
• Free software upgrades for lifetime
• Unlimited user license
