Signal Access Module

  • 2 spare ADC inputs, ±10 V with 24 bit resolution
  • 5 analog outputs: RMS, Phase, X, Y, Z with 24 bit resolution
  • Force, Excitation out: 16 bit resolution

XY manual sample positioner

  • 2x2 mm movement range with 10µm resolution

XY motorised sample positioner

  • 38x38 mm movement range with 1µm resolution

Active vibration isolation table

  • At above 15 Hz, system achieve an isolation of 40 dB
    – which means that 99.0% of the vibration is effectively isolated.

Passive vibration isolation stage

  • Vertical natural frequency of 1/2 Hz or less can be achieved over the entire load range.

Acoustic/air flow isolation cabinet

Accessories videos are avaliable.

You can watch ezAFM Product Videos on Youtube and subscribe our channel. Click here for go to our Youtube Channel..

Accessories Gallery

Accessories Photos

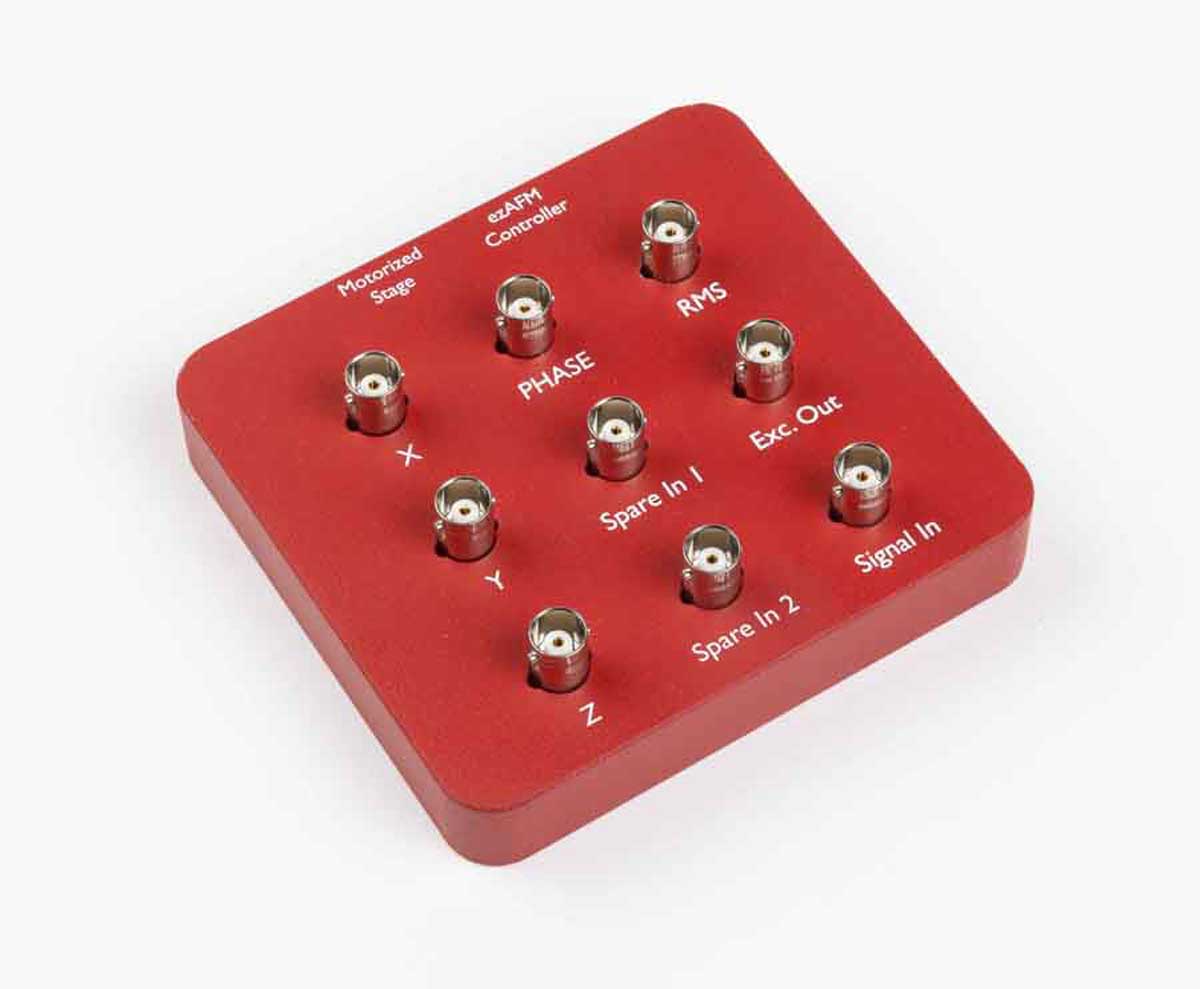

ezAFM Signal Access Module

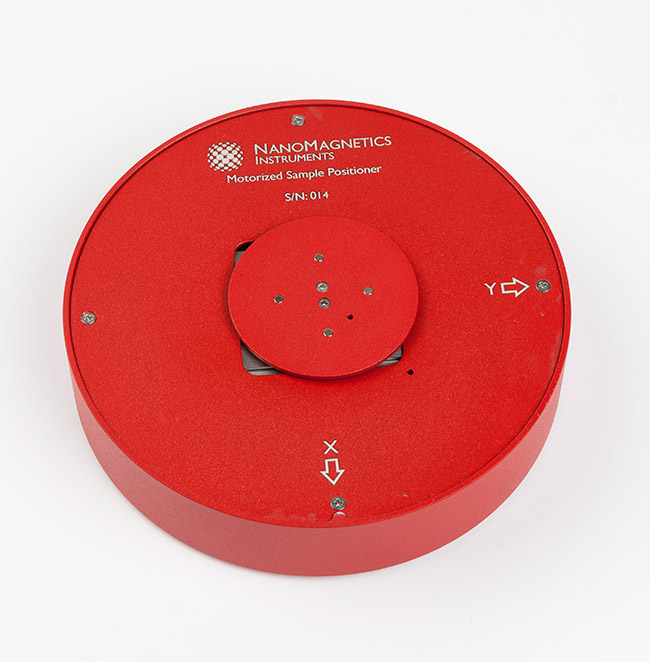

ezAFM Motorized Sample Positioner
ezAFM Motorized Sample Positioner
Buraya kare şeklinde foto.
ezAFM Signal Access Module

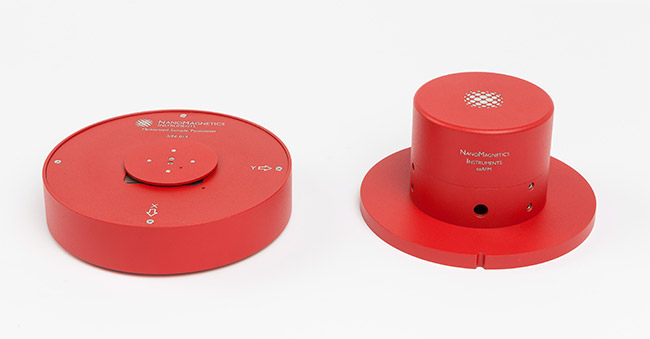

ezAFM Motorized Sample Positioner

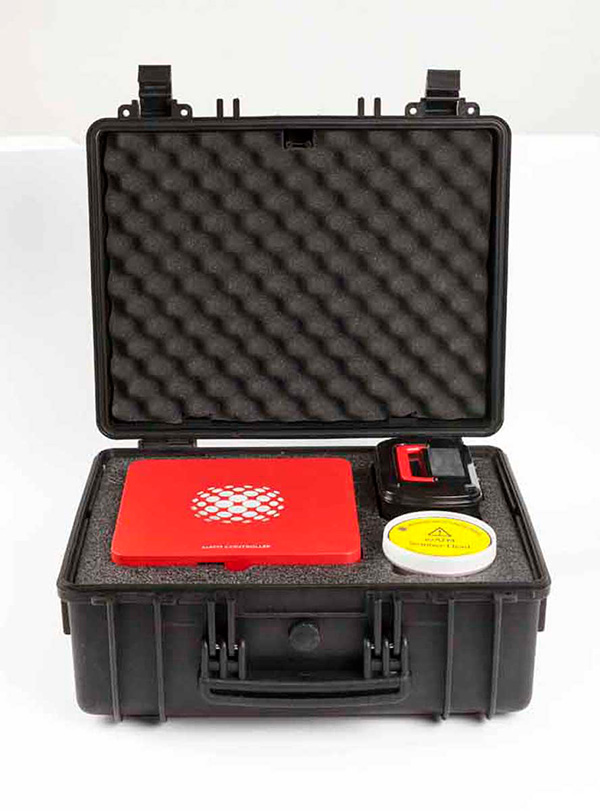

ezAFM Transportation case.

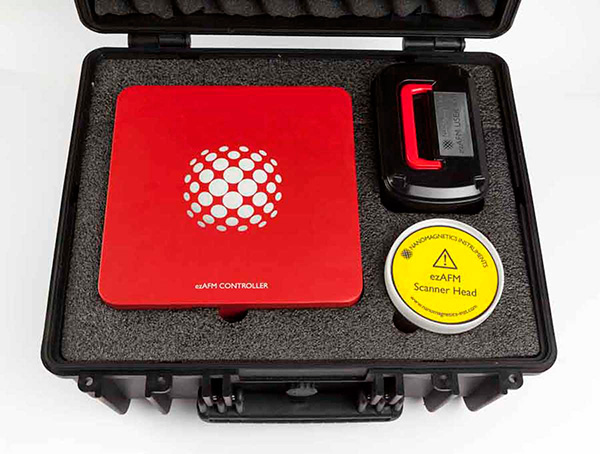

ezAFM Transportation Case
